Bathroom Sink Pop-Up Drain Assembly with Overflow, Cast Brass, 1-1/4 in., cUPC
Complete lift-rod pop-up drain for standard 1-1/4 in. lavatory sinks with an overflow channel. Cast brass in polished chrome.
Replaces these part numbers
| OEM part numbers | Aftermarket equivalents |
|---|---|
| Standard lift-rod pop-up drain assemblies on 1-1/4 in. lavatory sinks | n/a |
Will it fit?
Fits
- Bathroom lavatory sinks with a built-in overflow channel
- Standard 1-1/4 in. pre-cut drain openings
- Porcelain, ceramic, granite composite and solid surface basins
- Faucets with a vertical lift rod
Not compatible with
- Sinks without an overflow channel
- Vessel basins with a 1-3/4 in. threaded drain port
- Kitchen or utility sinks
- Grid drains with no stopper
- Push-button touch-toe drains
Is this your part?
Look for a small overflow hole on the front rim inside the bowl. This drain has a side overflow port and only works on basins with that channel. Then measure the drain opening: it should be the standard 1-1/4 in. lavatory size.
When to replace it
The sink no longer holds water, the stopper will not lift or seat, the flange is corroded, the lock nut seeps at the flange seal, or a cracked pivot housing drips into the cabinet.
Specifications
| FourHome part | 4HB00010 |
|---|---|
| UPC | 850054895844 |
| Body length | 8 in. from underside of flange to outlet |
| Top flange | 1-3/4 in. across |
| Tailpiece connection | Standard 1-1/2 in. slip-joint P-trap |
| Material | Cast brass, polished chrome |
| Certification | cUPC, IAPMO R&T, ASME A112.18.2 / CSA B125.2 |

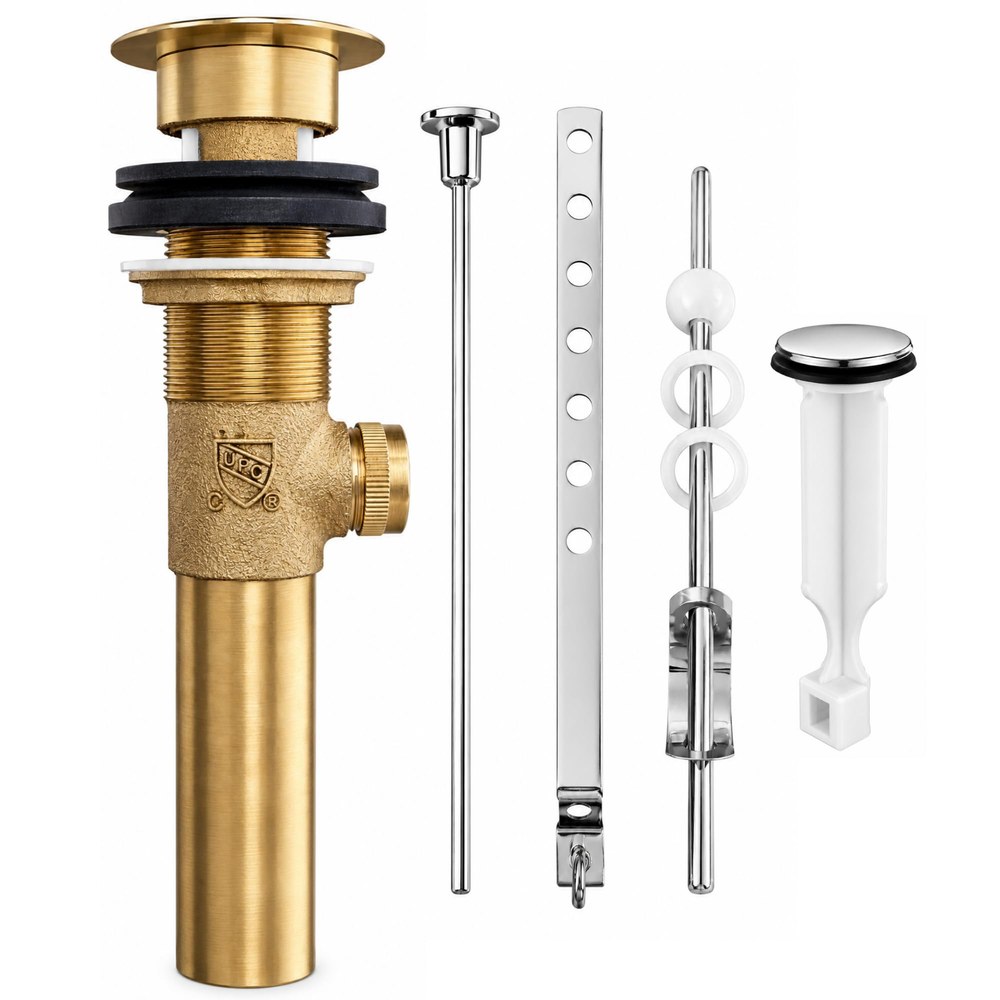

What is in the box
- Stopper
- Drain body and tailpiece
- Lock nut and flange gasket
- Ball rod, pivot nut and retainer clip
- Two ball seal gaskets
- Lift rod and clevis strap with screw
- Plumber's putty is not included
How to install it
Time: 20 to 30 minutes. Tools: Channel lock pliers, Basin wrench, Plumber's putty or silicone, Bucket.
- Put a bucket under the trap and break the slip nut at the trap.
- Back off the old lock nut and lift the old drain body out of the basin.
- Bed the new flange on plumber's putty or silicone.
- Thread the lock nut up from below and snug it with channel locks or a basin wrench.
- Reconnect the trap.
- Tie the pivot rod into the lift rod through the clevis strap.
- Wipe the putty squeeze-out from around the flange before it skins over.
Questions
Will this fit a sink without an overflow hole?
No. The drain has a side overflow port and needs a basin with an overflow channel.
Will it fit a vessel sink?
No. Vessel basins usually use a 1-3/4 in. threaded drain port.
Is it code-approved?
It is cUPC listed by IAPMO R&T to ASME A112.18.2 and CSA B125.2, and the cUPC mark is cast into the drain body so it can be checked on the installed part.
Is plumber's putty included?
No. Use plumber's putty or silicone under the flange.
