Bathroom Sink Pop-Up Drain with Overflow, Chrome PVC Body, cUPC
Complete lift-rod pop-up drain with chrome trim over a thick-wall PVC body, for standard lavatory openings on basins with an overflow. 8-1/2 in. overall.
Replaces these part numbers
| OEM part numbers | Aftermarket equivalents |
|---|---|
| Standard lift-rod lavatory pop-up drain with overflow | n/a |
Will it fit?
Fits
- Bathroom sinks and vanity tops with a built-in overflow opening
- Standard residential P-trap connections
- Faucets with a vertical lift rod behind the spout
Not compatible with
- Basins with no overflow opening
- Vessel sinks
- Kitchen or utility sinks
- Grid drains
- Push-button or toe-touch drains
- Drains tied into a garbage disposal
Is this your part?
Look inside the bowl for the small oval overflow opening near the rim. This drain has a side overflow port and needs that channel. Confirm you have at least 8-1/2 in. from the flange face down to the trap connection.
When to replace it
The basin will not hold water, the stopper will not lift or seat, the flange seeps around the drain hole, or the tailpiece has cracked at the threads or slip joint.
Specifications
| FourHome part | 4HB00017 |
|---|---|
| UPC | 850054895851 |
| Overall length | 8-1/2 in. |
| Body | Thick-wall PVC drain body and tailpiece |
| Finish | Chrome flange and stopper cap |
| Overflow | Side overflow port |
| Certification | cUPC, ASME A112.18.2 / CSA B125.2 |

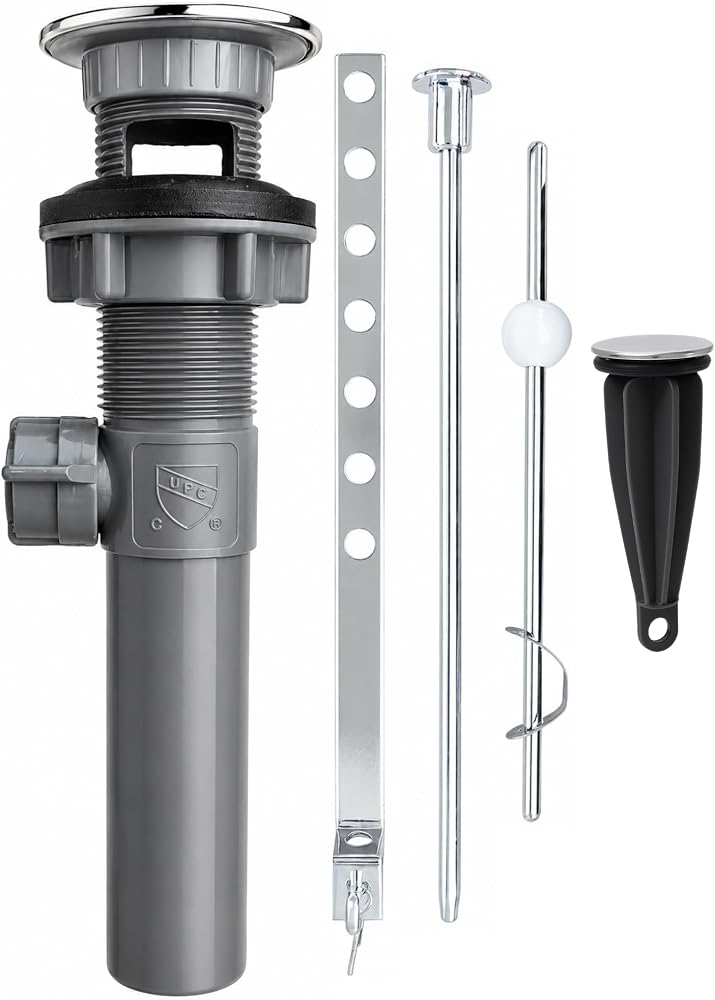

What is in the box
- Stopper
- Drain body with overflow port
- Tailpiece
- Mounting nut and flange gasket
- Ball rod and pivot nut
- Lift rod
- Clevis strap and screw
- Plumber's putty not included
How to install it
Time: 20 to 30 minutes. Tools: Adjustable pliers, Small wrench, Plumber's putty, Bucket.
- Set a bucket under the trap and break the slip nut.
- Back off the old mounting nut and lift the old drain body out of the basin.
- Bed the new flange in fresh plumber's putty.
- Tighten the mounting nut from below in small steps. One hard pull can crack a porcelain basin.
- Connect the ball rod and clevis strap to the lift rod.
- Check that the stopper seats and lifts cleanly, then reconnect the trap.
Questions
Why a PVC body?
PVC does not rust, scale or pit in hard water or under drain cleaner. A metal body takes more wrenching at the nut, so FourHome also sells a cast brass drain.
Does it fit a sink with no overflow hole?
No. It has a side overflow port. A basin with no overflow needs a sealed drain.
Is plumber's putty included?
No. Use plumber's putty under the flange.
Is it code listed?
Yes. It is cUPC listed, and the mark is cast into the drain body.
