Moen 1225 Replacement Push-Pull Cartridge Kit with Clips and Tool

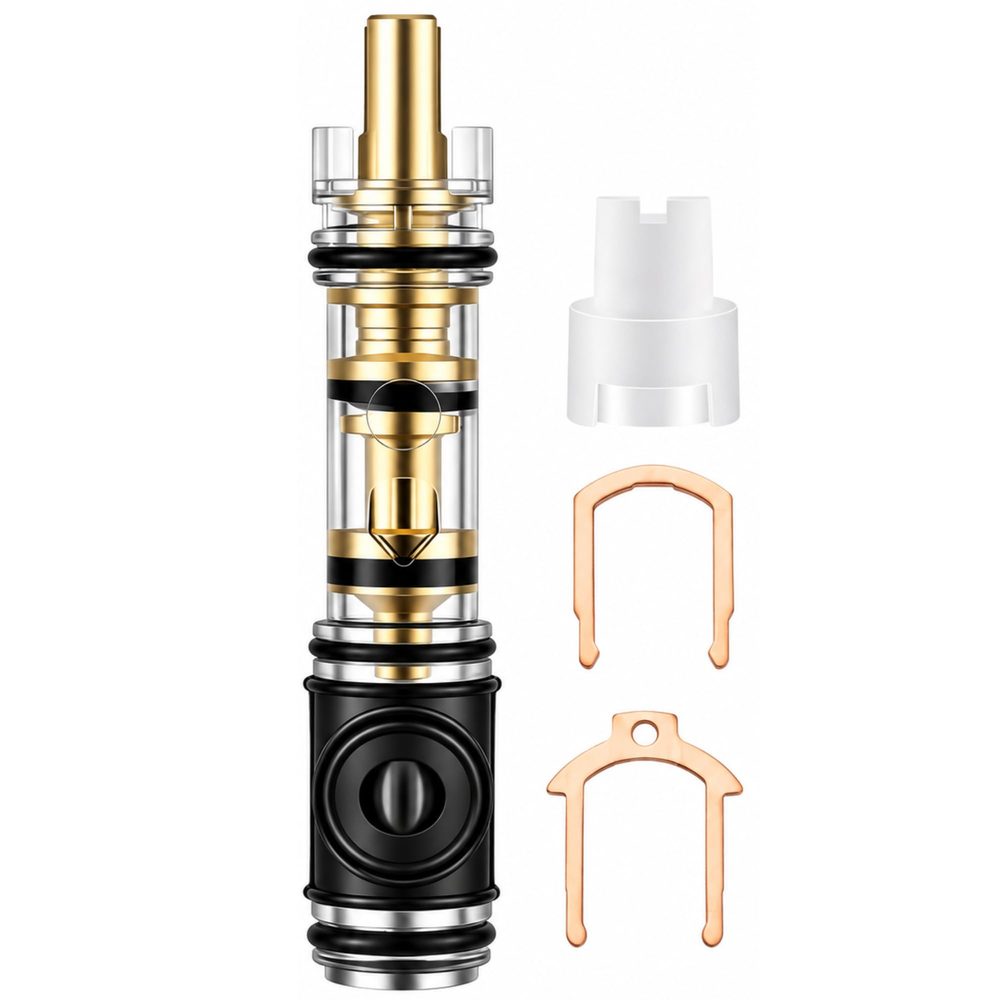

Push-pull brass cartridge for Moen single-handle kitchen, bath and tub/shower faucets. Kit includes 2 retainer clips and a twist cap removal tool.
Replaces these part numbers
| OEM part numbers | Aftermarket equivalents |
|---|---|
| Moen 1225 Moen 1225B Moen 1200B | Danco 88860 Danco MO-8 Danco 80993TS Lasco 0-2017 Plumb Pak PP808-71 |
Will it fit?
Fits
- Moen single-handle push-pull kitchen faucets
- Moen single-handle push-pull lavatory faucets
- Moen single-handle push-pull tub and shower valves
- Chateau, Legend and Monticello fixtures built on the 1225
Not compatible with
- Posi-Temp pressure-balance valves (they use the 1222)
- The 1224 two-handle cartridge
- Moen thermostatic valves
- Two-handle Moen faucets
Is this your part?
Pull the handle and lift the retainer clip. A 1225 push-pull cartridge starts the water when you pull the stem straight out and stops it when you push it in, with rotation only to mix hot and cold. If your handle sets temperature by rotating a lever from a fixed off position, you have a different valve.
When to replace it
The spout drips after shutoff, water weeps around the handle base, the handle binds or grinds mid-stroke, or hot and cold bleed together so the water never reaches full temperature.
Specifications
| FourHome part | 4H1615303 |
|---|---|
| UPC | 850054895035 |
| Overall length | 6-1/8 in. |
| Body length | 4-1/4 in. |
| Materials | Low-lead brass body and stem, stainless at the seal faces |
| Certification | NSF/ANSI/CAN 372 lead-free (IAPMO R&T) |
| Pieces | Cartridge, 2 retainer clips, twist cap |
What is in the box
- 1 brass push-pull cartridge with O-rings lubricated
- 2 retainer clips
- 1 white twist cap that doubles as the removal tool
How to install it
Time: About 20 minutes. Tools: Screwdriver or hex key, Pliers, Silicone plumber's grease.
- Shut off the supply and open the faucet to relieve pressure.
- Remove the handle.
- Lift the retainer clip out of the valve body with pliers.
- Thread the white twist cap onto the old cartridge, break it loose and draw it straight out.
- Slide the new cartridge in with the stem notch facing up.
- Seat the retainer clip before the water goes back on. Line pressure pushes an unclipped cartridge out.
- Refit the handle, turn the water on and check for leaks.
Questions
Does it come with a retainer clip?
Yes. The kit includes 2 retainer clips and the white twist cap removal tool.
Is it lead-free?
Yes. The wetted brass is certified to NSF/ANSI/CAN 372 by IAPMO R&T.
Will it fit my Posi-Temp shower?
No. Posi-Temp valves use the 1222 cartridge.
Is there a 2 pack?
Yes. A 2 pack with 4 retainer clips and 2 twist caps is sold on Amazon.
The old cartridge will not come out. What now?
A heavier Moen 104421 style puller is the next step for a cartridge calcified in place.
