Stuck or Broken Shower Cartridge? How to Get It Out Without Wrecking the Valve
Most cartridge swaps go fine until the old cartridge will not come out. This Old House explains why it happens: the cartridge has been seated in the valve body for years, and the O-ring seal can crust up over time. Pulling harder is the mistake. Richard Trethewey of This Old House says that if he just tries to pull an old cartridge with pliers, he could break it and leave parts inside the wall, and a broken cartridge could mean replacing the entire shower valve.

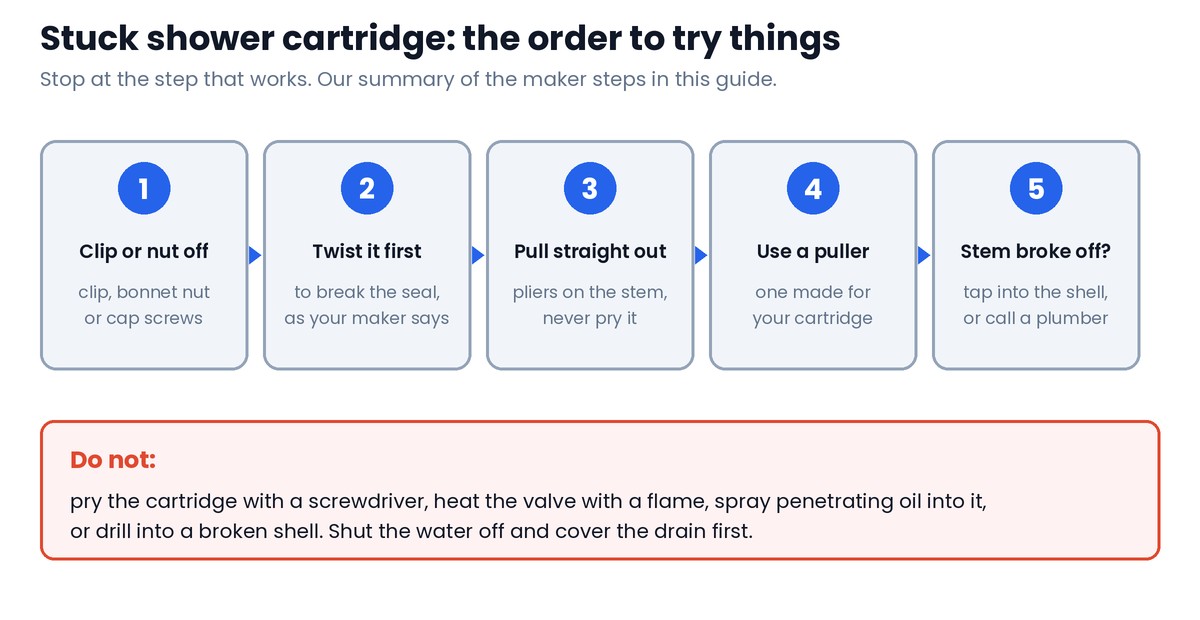

This guide goes in the order we would try things: make sure nothing is still holding it, twist before you pull, use a puller, and, if the stem has already snapped, the method Moen gives for getting the broken shell out. It covers single-handle cartridges from Moen, Delta and Kohler. For the full swap once the old one is out, see our Moen 1222 guide or Delta Monitor guide.
Turn off the water to the shower at its shutoff valves or at the main, then open the faucet to relieve the pressure and confirm the water is off, as Family Handyman and The Home Depot both say. Put a towel in the tub and over the drain so small parts cannot fall in, as This Old House and The Home Depot both advise. Moen warns not to drop the retainer clip behind the wall, and that if the clip cannot be put back or is damaged, the water cannot be turned back on to the faucet until the clip is replaced. Do not pry or lever the cartridge. Delta says do not pry the cartridge out of the body with a screwdriver.
Step 1: Make sure nothing is still holding it
A cartridge that is still clipped or capped in will never come out. Check which one your valve uses.
| Valve | What holds the cartridge | What the maker says |
|---|---|---|
| Moen Posi-Temp (1222 cartridge) | A retainer clip (a U-shaped copper clip or a silver wire clip) | Moen: be careful not to drop the retainer clip behind the wall. |
| Moen single handle with a 1225 cartridge | A U-shaped copper colored retaining clip | Moen: on a shower valve, pull off the stop tube and slide off the D washer first, then lift the tab at the top of the clip just enough to grab it. |
| Delta MultiChoice 13 and 14 series (RP46074) | A bonnet nut | Delta: remove the handle and bonnet nut, and note the position of the rotational limit stop first. Delta says the cartridge must always go back in the same position, and warns that failing to reinstall the disc after setting the rotational limit stop could result in scald injury. |
| Delta Monitor 1300 and 1400 series (RP19804) | A brass bonnet | Delta: unscrew the brass bonnet. |
| Kohler Rite-Temp K-304 (GP500520) | Two screws and a cap assembly | Kohler: remove the two screws, the collar if there is one, and the cap assembly. |
If the clip itself is stuck, a plumber writing in Plumber magazine suggests gently prying it with a scratch awl or a small Allen key, and warns that a dropped clip will usually fall behind the shower wall.
Step 2: Twist before you pull
Turning the cartridge breaks the seal that years of use have built up. Pull only after it turns.
- Moen 1222. Moen says to use the plastic twisting tool to rotate the cartridge, remove the tool, then grab the stem with pliers or channel locks and pull the cartridge out, and that this may require some effort. Our replacement 1222 ships with one white plastic removal tool, and our 10 pack of 1222 tools fits over the 1222 stem.
- Moen 1225. Moen says to use the plastic twisting tool provided in the 1225 cartridge kit to turn the cartridge a 1/4 turn either way to loosen it, then pull the stem with pliers.
- Delta 13 and 14 series. Delta says to place the handle on the stem and rotate it counterclockwise about 1/4 turn after the stop has been contacted, then lift the cartridge out.
- Delta 1300 and 1400 series. Delta says to put the handle back on the brass stem and rotate it counterclockwise while lifting the cartridge out of the two notches on the sides of the body.
- Kohler Rite-Temp. Kohler's service instructions remove the pressure balancing unit using pliers, and name no special tool.
Step 3: Pull straight, or use a puller
Family Handyman says that if you cannot budge the old cartridge, you will need a cartridge puller, and to make sure you twist the cartridge loose before pulling it out. A puller grips the cartridge and braces against the valve, so the pull stays straight. This Old House says the puller can safely extract the old cartridge without damaging the valve body.
Moen says its 104421 puller can be used to remove single handle cartridges part numbers 1200, 1225 or 1222. In Moen's steps, you take out the retainer clip, pull the stem to the full open position (on a 1222, turn the stem with an adjustable wrench so the notch faces the top), fit the tool's tabs between the cartridge tabs, thread its knurled screw into the cartridge stem by hand, and run the hex nut down until it stops on the valve. Then twist the tee handle by hand to turn the cartridge body. If it still will not pull, Moen says to hold the tee handle so it does not turn, tighten the hex nut with a wrench, and use the cross handle to help pull the cartridge out. Danco also makes a cartridge puller that it says removes frozen cartridges on Moen faucets only. We do not sell the Moen 104421 or a screw-type puller like it; our plastic tools are for turning the cartridge.
No Delta or Kohler puller turned up in the maker pages we read. For those valves, follow the twist and lift steps above, and do not pry.
Step 4: Still stuck?
Mineral buildup is a common reason. This Old House says a cartridge that is hard to take out may be stuck due to mineral buildup. Here is what the sources say, and what they do not.
- Hunker suggests heating the cartridge with a hair dryer for 10 to 15 minutes, and injecting vinegar into the valve housing with a syringe and letting it work overnight. That is Hunker's method. Moen's own cleaning steps for the valve use a nylon brush and a flush, not vinegar.
- No flame. A Moen valve installation sheet, in its soldering steps, warns that applying excessive heat to the valve body may damage the cartridge. We read that as a reason to keep a torch away from any valve.
- No penetrating oil. None of the maker pages we read suggests it, and Moen warns that petroleum-based lubricants may react with the rubber seals. That choice is our own advice.
If the cartridge still will not move, stop there. A plumber with the right puller may get it out without damage, and a cracked valve behind tile is a much bigger job. That last line is our own view.

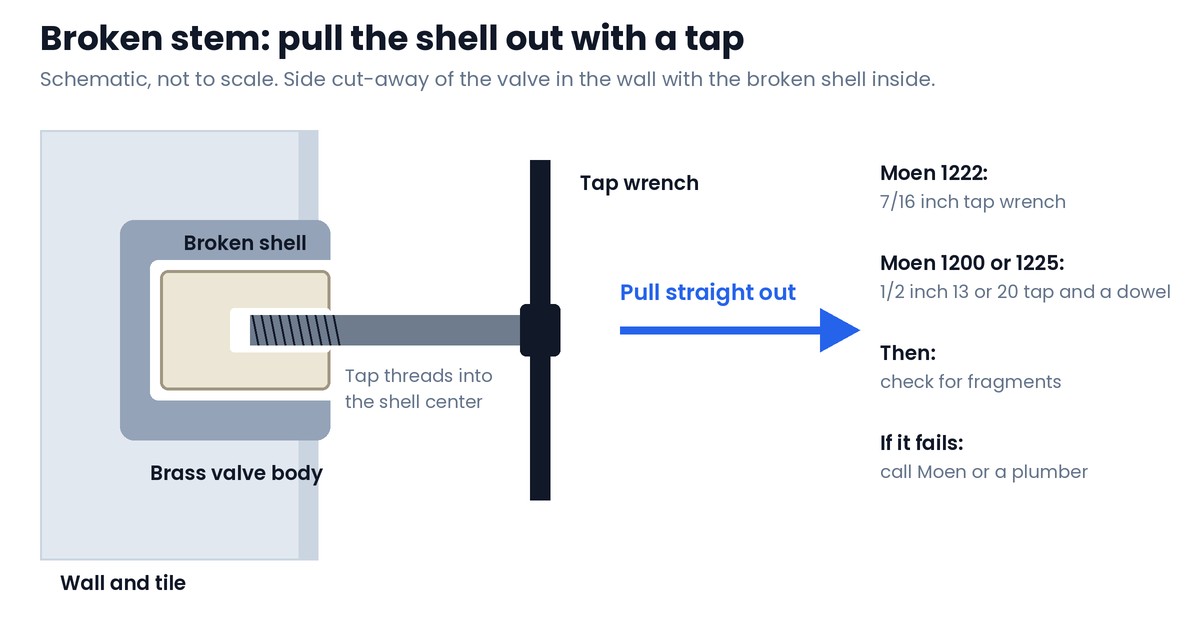

If the stem broke off
Moen explains how this happens on a Posi-Temp valve: when a shower handle becomes hard to rotate, it can put additional stress on the brass stem of the cartridge, which occasionally causes the stem to break off and leave the white body or shell of the cartridge stuck inside the brass valve body. Moen gives a method for each cartridge.
| Cartridge | Moen method |
|---|---|
| Moen 1222, stem broken off | Remove the retaining clip. Thread a 7/16 inch tap, turned with a tap wrench (Moen calls it a 7/16 inch tap wrench), into the center opening of the shell, where the stem broke off, so it grabs the interior walls, then use the tap wrench to pull the shell out. Inspect the valve for any remaining fragments. |
| Moen 1200 or 1225, stem out, shell stuck | Remove the retainer clip. Screw a 1/2 inch, 13 thread (N.C.) or 1/2 inch, 20 thread (N.F.) tap into the shell to cut threads, then back it out. Drop a 3/8 inch hardwood dowel, cut 1-3/4 inch long, into the shell, then thread the tap back in so it pushes on the dowel and forces the shell out. Hold the cartridge tabs with a small screwdriver so the shell does not spin. |
From Moen's articles on removing a broken 1222 cartridge and a stuck 1200 or 1225 cartridge. If it does not work, Moen recommends you contact Moen for further assistance at 1-800-BUY-MOEN. Danco also makes a two-in-one core puller for Moen stems and cartridges with a mode that locks into the outer body to pull it out.
Do not drill into the valve or use a screw extractor on your own. None of the maker steps we read call for it, and damage to the brass valve body is what turns a cartridge job into a valve replacement. That is our own advice.
After it is out: clean, grease, then install
Moen says it is highly recommended to clean and flush the valve body before installing the new cartridge. Its method is to gently scrub the inside walls of the valve body with a nylon bristle brush, such as a toothbrush or bottle brush, then, with the cartridge still out, turn the water on slightly to flush the valve, turn it back off, and dry the valve with a rolled paper towel so the new cartridge fits all the way in. Moen warns that the water may come out of the valve body with considerable force, and recommends standing outside the tub or shower when the water is turned back on. For a Kohler Rite-Temp valve, Kohler says to clean any debris or brass burrs out of the valve body with a 50/50 white vinegar and water solution, and to remove burrs with a Scotch-Brite pad without scratching the sealing surface where the unit seats.
Use silicone grease on the new cartridge. Moen says to use a silicone-based grease and not plumber's grade faucet grease, silicone sprays or any lubricant that may contain petroleum. Kohler says to apply silicone lubricant on the small O-rings on the back of its pressure balancing unit. Hunker notes that lubricating the O-rings at install could have prevented a stuck cartridge in the first place.
When to stop and call a plumber
Each of these is our own advice, except where a maker is named.
- The cartridge will not move after the clip is out, the twist steps and a puller made for it.
- The broken shell will not come out with the tap method, or pieces are left in the valve. Moen says to contact Moen if its method does not work.
- The valve body is cracked, scored or turns in the wall when you work on it.
- Water leaks behind the wall, or the shutoff will not hold.
- Delta notes that plumber installation is recommended for its RP19804 cartridge.
Frequently asked questions
Why is my shower cartridge stuck?
Usually mineral buildup and old seals. This Old House says the O-ring seal can crust up over time after years in the valve body, and that a stuck cartridge may be stuck due to mineral buildup. Also check that the retainer clip or nut is fully off, because the cartridge will not come out while it is still held.
Can I just pull it out with pliers?
Twist it first. Moen pulls the cartridge with pliers or channel locks only after turning it with a plastic twisting tool, and This Old House warns that pulling hard on an old cartridge with pliers could break it and leave parts inside the wall. Pull straight out, and do not pry it with a screwdriver, as Delta warns.
What is a cartridge puller?
A tool that grips the cartridge and pulls it straight out while bracing on the valve. Moen says its 104421 puller can be used to remove its 1200, 1225 and 1222 single handle cartridges. Danco makes a puller for Moen faucets only. FourHome does not sell the Moen 104421 or a screw-type puller like it; our plastic tools fit over the cartridge so you can turn it to break the seal.
The stem broke off and the shell is still in the valve. Now what?
For a Moen 1222, Moen says to remove the retaining clip, thread a 7/16 inch tap wrench into the center of the shell where the stem broke off, and use it to pull the shell out, then check for fragments. For a 1200 or 1225, Moen uses a 1/2 inch tap and a hardwood dowel. If that fails, Moen says to call Moen before you try anything else, and we would call a plumber rather than drill into the valve.
Should I spray penetrating oil or use a torch?
We would not do either, and no maker we read recommends them. Moen warns that petroleum-based lubricants may react with the rubber seals, and a Moen valve installation sheet warns, in its soldering steps, that excessive heat on the valve body may damage the cartridge. If you try heat at all, use a hair dryer, the method Hunker describes, and never a flame.
Sources
The steps above come from these pages, except where a step says the advice is our own. We opened each one on October 12, 2026.
- Moen: 1222 cartridge, single handle shower Posi-Temp, 1225 cartridge, single handle shower, using a 104421 cartridge removal tool, how to remove a broken 1222 Posi-Temp cartridge, removing a stuck 1200 or 1225 cartridge, valve body cleaning and flushing, handle is difficult to operate and the MT246D valve instruction sheet.
- Delta: MultiChoice 13/14 series trim instructions and RP19804 cartridge instructions, and the RP19804 and RP46074 part pages.
- Kohler, Rite-Temp K-304 service part installation instructions.
- Danco: cartridge puller for Moen and two-in-one core puller instructions.
- This Old House: How to Replace a Shower Cartridge, How to Replace a Clogged Shower Valve and How to Replace a Shower Valve.
- Family Handyman, Shower Faucet Leaking? Here's How to Fix It.
- The Home Depot, How to Fix a Leaky Shower Faucet.
- Hunker, How to Get a Stuck Cartridge Out of a Shower Valve.
- Plumber magazine, Shower Valve Service Lessons.

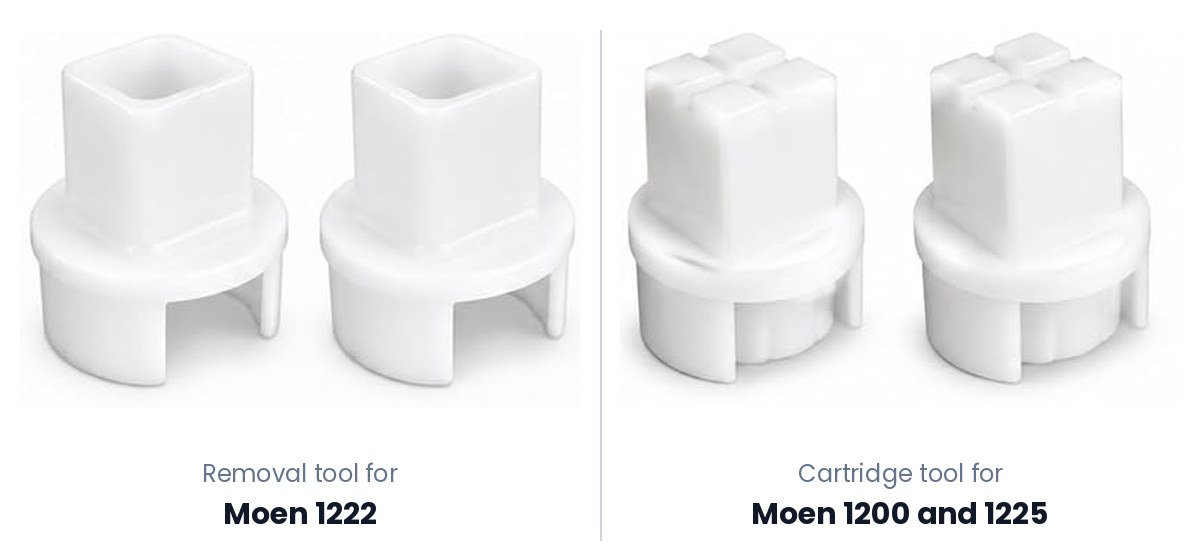

Plastic removal tools for Moen 1222 and for Moen 1200 and 1225 cartridges, plus replacement cartridges for Moen, Delta, Kohler, Pfister, Grohe and more, shipped from Amazon fulfillment centers with Prime delivery.
